PF12 portable photometer

PF12plus Portable Photometer

PF-12plus Photometer

Hand-held Photometer

Click the 'Request a Quote' link below to get up to date pricing information

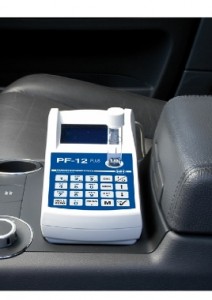

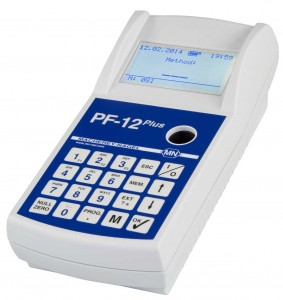

PF12plus, is a hand-held portable photometer for field and laboratory use. It comes complete in a case with manual, rechargeable batteries and charger.

Measure what you want, when you want, where you want.

Hand Held photometer


The PF12plus is easy to use, the glass tubes push straight into the 16mm round cuvette slot.

It gives a direct reading in mg/l for your chosen parameter - choose from a huge range of parameters.

Just order a new test kit from the Nanocolor or Visocolor range to measure a new parameter. Some parameters require additional equipment such as a digestion block in order to complete the analysis.

Each test kit comes with a simple-to-understand pictorial instruction sheet, and usually contains 18-20 tests plus the necessary reagents.

User guidance is available in 12 languages, and there is a clear backlit 64 x 128 pixel display.

M N Photometers

A USB 2.0 interface allows data export directly into a PC/laptop in MS Excel format from an on-board memory of up to 1000 test results.

Software updates directly from the internet using the same USB port.

See the full range of Macherey Nagel Photometers including portable hand-held units and multi-functioning desk-top units.

  • Field and laboratory use, wavelength range 340-860 nm
  • NEW Nephelometric turbidity measurements
  • Integrated turbidity check
  • Battery/USB, in car cigarette lighter or mains operation
  • Pre-programmed calibrations
  • Over 100 pre-programmed tests
  • Visocolor tests/Nanocolor tests
  • Extinction measurement
  • Dimensions 215 x 100 x 65 mm, weight 0.7kg
  • IP68 housing
COD analysis schematic
PF12+ Brochure

Click on the image to download the 8-page PF12+ brochure

Or contact us for more information

  • Format: PDF
  • Filesize: 939KB
Quote REQ

Click on the image to open a quote request form for the PF12

Or contact us for more information on our range of photometers and test kits

COD analysis schematic
PF12+ Manual

Click on the image to download the PF12+ manual

Or contact us for more information

  • Format: PDF
  • Filesize: 905KB
Nanocolor App

Learn about the Macherey Nagel Smartphone App that can recognise QR codes on Nanocolor test kits. The app can:

  • give you the expiry date of the test
  • provide certificates
  • tell you the expiry data
  • show you how to use the kit properly
  • access vital safety data.
