QuickTOCultra – online TOC

QuickTOCultra
OnLine TOC

online TOC analysiss

Online TOC Analysis

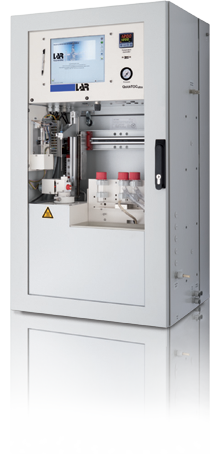

The QuickTOCultra functions as a high temperature online TOC analyser without the need for any filtration.

Applications include Municipal wastewaters containing significant solids levels, industrial wastewaters with high salt concentrations, relatively clean river waters, boiler feed water and condensate return.

The QuickTOCUltra online TOC monitor analyses aqueous samples for total organic carbon using thermal oxidation at 1,200°C. Samples are delivered to the analyser through the patented FlowSampler®. This captures 98% of the TOC in the sample flow, and remains maintenance free. The instrument measures True TOC (with all organic carbon oxidised to CO2), Total Carbon, and Total Inorganic Carbon.

The system captures non- volatile; volatile; and purgeable organics along with inorganic carbon in the single Total Carbon measurement. The Inorganic Carbon is measured separately by cold acid reaction producing CO2. This technology has proved itself to be reliable in many demanding applications.

The QuickTOC Ultra is part of a range of LAR online TOC analysers built with specific applications in mind - these analysers are based on a common platform, but have been optimised for specific tasks. This means, each instrument has exactly the features required for the job. Total Nitrogen and/or Total Phosphorus can also be measured using the same instrument.

BACK TO TOC INSTRUMENTATION PAGE↵

  • 1,200°C oxidation (no catalysts needed)
  • Ozone Free
  • Response time: typical - 3 minutes
  • Can handle salt concentrations up to 300g/lt Sodium Chloride.
  • Analyser availability at least 98%
  • Sample Preparation uses the patented FlowSampler®
  • Touch Screen Control and Display
  • Digital and analog output signals for external alarms and controls
  • Access levels set with robust technology
  • Multi-channel options
  • Low maintenance a maximum of 30 mins per week
  • The QuickTOCultra can be configured to add in Total Nitrogen and Total Phosphorous
QuickTOC

QuickTOC Brochure

Click on the image to download the 8-page QuickTOCultra brochure

Or contact us for more information on LAR analysers

  • Format: PDF
  • Filesize: 299KB
Download QuickTOCultra brochure
QuickTOC

QuickTOC Data sheet

Click on the image to download the 2-page QuickTOCultra data sheet

Or contact us for more information on LAR analysers

  • Format: PDF
  • Filesize: 189KB
Download QuickTOCultra Data Sheet

Quote REQ



Click on the image to open a quote request form for the LAR online TOC monitor

Or contact us for more information on our range of online analysers
